Extrusion Plastic Flat PA66 GF25 Polyamide Thermal Break Strip For Aluminum System Broken Bridge Windows

Name: Extrusion Plastic Flat PA66 GF25 Polyamide Thermal Break Strip For Aluminum System Broken Bridge Windows
Brand: Polywell
Price: 3 USD

Extrusion Plastic Flat PA66 GF25 Polyamide Thermal Break Strip For Aluminum System Broken Bridge Windows Manufactures

Brand Name : Polywell

Model Number : PA66 GF25

Certification : SGS

Place of Origin : China

MOQ : 5000 Meters

Price : $3,900 - $4,500 / Set

Payment Terms : T/T

Supply Ability : 100000 meters per day

Delivery Time : 15-20 working days

Packaging Details : Linear or roll

Material : PA66 GF25

Color : Black

Application : Thermal break aluminum

Density : 1.25-1.35 g/cm3

Refractoriness : 200-450°C

Size : Customized

Length : 6 meters/piece

Certificate : SGS

Product Name : CT Shape Extruded Nylon Thermal break strips for Aluminun Windows

Contact Now

Extrusion Plastic Flat PA66 GF25 Polyamide Thermal Break Strip For Aluminum System Broken Bridge Windows

Product Description

Nylon66 Thermal barrier strip of polyamide extruding product, which is widely used for bridge insulating aluminum profile, has excellent performance such as high temperature resistance, chemical resistance, ultraviolet resistance and water resistance. The Linear Expansion Coefficient of the product is close to that of aluminum profile, which makes long durance of spacer and aluminum profile. The product has been tested by the Material Test Center of SGS. The product meets the National Standard of GB/T23615.1-2009.

Polyamide Thermal Break Strips for Aluminun Windows

Over the years, polyamide heat-insulation strip has been widely used in glass curtain walls due to its good properties and low cost. Especially Polyamide 66 reinforced by 25% glass fiber thermal break strips, they are inserted into aluminum window, door and facade profile for thermal insulation.

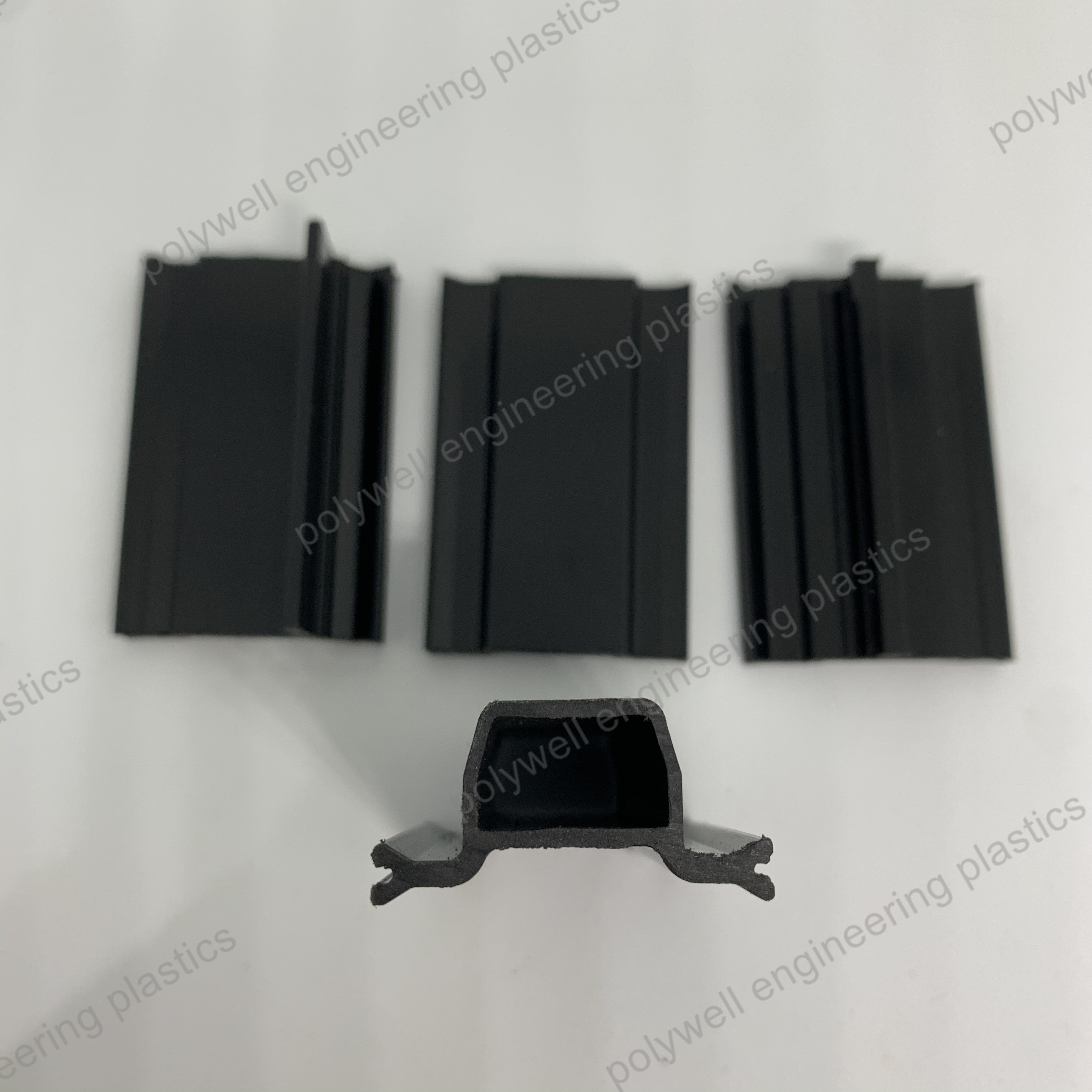

The shape CT thermal barrier polyamide strip can prevent the window frame from dust and water, has a better mechanical performance, is the first generation and easiest shape of insulating strips.

For the shape CT, we can provide the following size or customize according to customers' requirements.

Extrusion Plastic Flat PA66 GF25 Polyamide Thermal Break Strip For Aluminum System Broken Bridge Windows

Detailed Infomation

Advantages

igh quality, competitive price, free sample support and short lead time, high mechanical strength, high toughness, high softening point, good wear resistance, self-lubrication, long-term work at higher temperatures, high CTI value, excellent electrical insulation, low smoke and toxicity characteristics.

Application

It is mainly used in insulation broken bridge aluminium products, helping to reduce heat loss or heat gain through the aluminum, and has better performance in terms of power usage.

About Aluminum Bridge Profile

Thermal break strip, also called heat insulation strip, is a part of aluminum bridge profile. The heat-insulating bridge aluminum-plastic profile can realize the three-way sealing structure of doors and windows, and reasonably separate the water vapor chamber. It successfully realizes the pressure equalization of gas and water, and significantly improves the watertightness and airtightness of the doors and windows.

Product Parameters

Name	Specification	Brand	Material
Nylon Thermal Break Strips	PW-CT08	Polywell	PA66 GF25

Item	Unit	GB/T 23615.1-2009	PW-Technical specification
Density	g/cm3	1.3±0.05	1.28-1.35
Linear expansion coefficient	K-1	(2.3-3.5)×10-5	(2.3-3.5)×10-5
Vicat softening temperature	ºC	≥230ºC	≥233ºC
Melting point	ºC	≥240	≥240
Testing for tensile cracks	-	No cracks	No cracks
Shore hardness	-	80±5	80-85
Impact strength(Unnotched)	KJ/m2	≥35	≥38
Tensile strength(longitudinal)	MPa	≥80a	≥82a
Elasticity modulus	MPa	≥4500	≥4550
Elongation at break	%	≥2.5	≥2.6
Tensile strength(transverse)	MPa	≥70a	≥70a
High temperature tensile strength(transverse)	MPa	≥45a	≥47a
Low temperature tensile strength(transverse)	MPa	≥80a	≥81a
Water resistance tensile strength(transverse)	MPa	≥35a	≥35a
Aging resistance tensile strength(transverse)	MPa	≥50a	≥50a

1. Sample water content less than 0.2% by weight.
2. Norm laboratory condition:(23±2)ºC and (50±10)% relative humidity.
3. The specifications marked with "a" only applies to I-shape strip otherwise, the specifications concluded between supplier and buyer through consultation, shall be written in contract or purchase order.

Our Service&Company

Before sales

1. introduce products in detail
2. recommend suitable solutions
3. provide with reference information

During manufacturing

1. provide with layout and engineering conditions
2. inform the processing status
3. offer related documents

After Sales

1. provide installation, commissioning and training
2. offer spare parts
3. Provide with necessary technical support

Welcome to visit our company!

Please feel free to contact us if you have any questions.

Packing & Delivery

Packaging details:For all specifications/shapes, they could be packaged in linear, the length will be 6 meters, or customized.For the Shape "I", "C", and some simple shapes, they can be packed in rolls. 400-600 meters/roll.
Delivery details: shipped in 15-20 working days after payment

FAQ

About Sample

Sample is Free, but the express fee is collect or you pay us the cost in advance.

About MOQ

For the polyamide granules, MOQ is 1 ton. For the thermal break strips, MOQ is 10,000 meters.

About Customizing Special shape of polyamide Profiles and its period

You can customize the special shape of polyamide strips. If we didn't meet this shape before, we will make new mold for you, and you should pay for the mold.

About Customizing Package Style and Marks

You can customize the package style and marks.

Why your price is higher/lower than others?

For years specializing in polyamide granules and thermal break strips has bestowed us experienced and skilled technical workers and production workers. We promise the stability of products and the high-quality of raw material. Furthermore, we can provide technical support from raw material to the final appliance. Believe in that you can get better products and service with lower price.

About warranty

We are confident in our products, and pack them well before delivery, so usually you will receive your order in good condition. . Any quality issue, we will deal with it immediately.

About Payment

50% T/T before production, balance before shippment.
