I Shape 18.6mm Extruded Polyamide Thermal Insulating Profile Heat Break Strips for Broken Bridge Aluminum Windows

Name: I Shape 186mm Extruded Polyamide Thermal Insulating Profile Heat Break Strips for Broken Bridge Aluminum Windows
Brand: Polywell
Price: 0.20 USD

Place of Origin : China

Brand Name : Polywell

Model Number : PW-I148

Supply Ability : 100000 meters per day

MOQ : 5000 meters

Price : $0.20 - $1.00 / Meter

Packaging Details : Linear or roll

Delivery Time : 10-15 working days

Payment Terms : T/T

Certification : SGS

Material : Polyamide66 Reinforced by 25%Glass Fiber

Color : black

Application : For Thermal Break Aluminum Profile

Port : Shanghai

Refractoriness : 200-450°C

Apparent Density : 1.25-1.35 g/cm3

Production Capacity : 100000 M/Day

Technical Performance : GB/T 23615.1-2009

Life : More Than 40 Years

Transport Package : Roll or Linear

Contact Now

Product Description

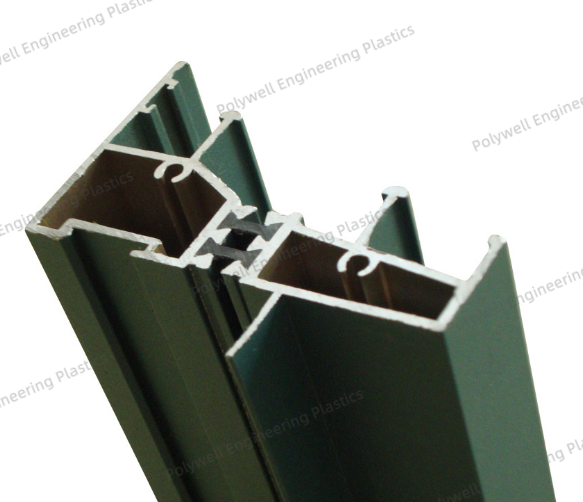

Over the years, polyamide heat-insulation strip has been widely used in glass curtain walls due to its good properties and low cost. Especially Polyamide 66 reinforced by 25% glass fiber thermal break strips, they are inserted into aluminum window, door and facade profile for thermal insulation.

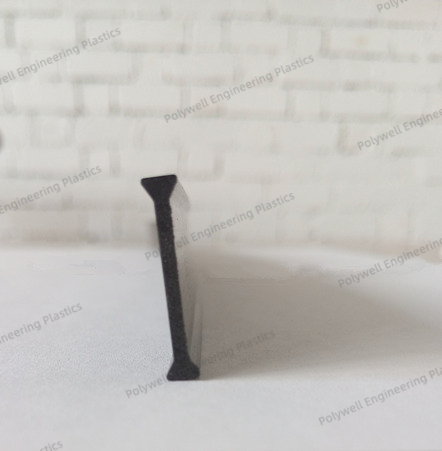

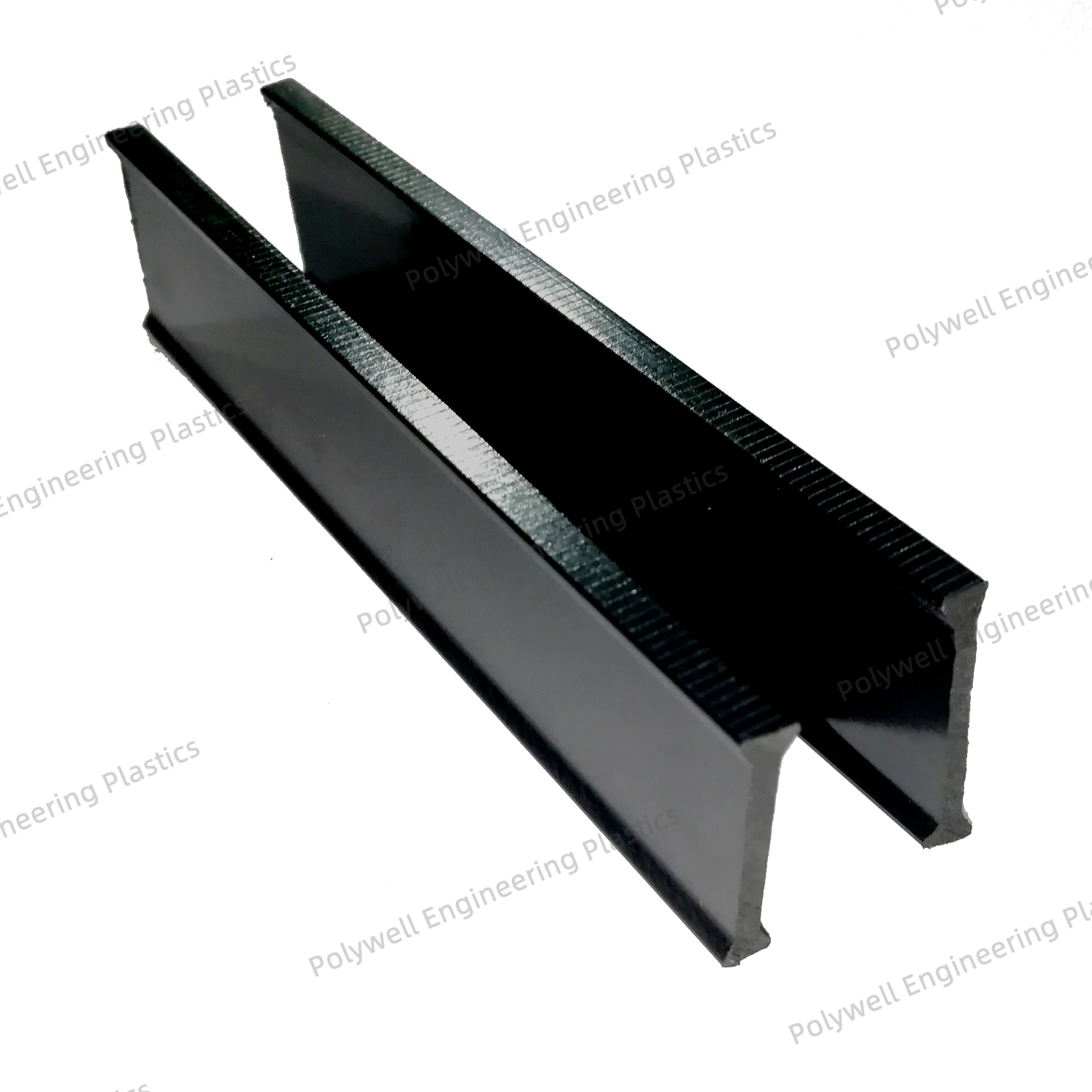

The shape I thermal barrier polyamide strip can prevent the window frame from dust and water, has a better mechanical performance, is the first generation and easiest shape of insulating strips.
For the shape I, we can provide the above size or customize according to customers' requirements.

Advantages

1.Effectively increased thermal in the system property insulation.
2.Reduces condensation on the window.
3.Sound insulated.
4.Improve comfort and living condition.
5.Possible double color coatings provide better aesthetic effect.
6.Various shapes will be designed for the customer's requirements.
7.The working temperature of the thermal insulation strip is 220°C, Melting Point reaches to 246°C. This enables coating process after assembly of composite profiles.
8.High corrosion-resistance, weather-resistance, heat-resistance, alkali-resistance and long life of usage.
9.linear thermal dilation coefficient almost identical to that of aluminium profiles.

Product Parameters

Name	Specification	Brand	Material
Polyamide Granules	PA66 GF25	Polywell	PA66, Fiberglass

Item	Unit	GB/T 23615.1-2009	PW-Technical specification
Density	g/cm3	1.3±0.05	1.25-1.35
Linear expansion coefficient	K^-1	(2.3-3.5)×10^-5	(2.3-3.5)×10^-5
Vicat softening temperature	ºC	≥230ºC	≥230ºC
Melting point	ºC	≥240	≥240
Testing for tensile cracks	-	No cracks	No cracks
Shore hardness	-	80±5	76-85
Impact strength(Unnotched)	KJ/m²	≥35	≥35
Tensile strength(longitudinal)	MPa	≥80^a	≥80^a
Elasticity modulus	MPa	≥4500	≥4500
Elongation at break	%	≥2.5	≥2.5
Tensile strength(transverse)	MPa	≥70^a	≥70^a
High temperature tensile strength(transverse)	MPa	≥45^a	≥45^a
Low temperature tensile strength(transverse)	MPa	≥80^a	≥80^a
Water resistance tensile strength(transverse)	MPa	≥35^a	≥35^a
Aging resistance tensile strength(transverse)	MPa	≥50^a	≥50^a

1. Sample water content less than 0.2% by weight.
2. Norm laboratory condition:(23±2)ºC and (50±10)% relative humidity.

3.The specifications marked with "a" only applies to I-shape strip otherwise, the specifications concluded between supplier and buyer through consultation, shall be written in contract or purchase order.

Packing & Delivery

Packaging details:For all specifications/shapes, they could be packaged in linear, the length will be 6 meters, or customized.For the Shape "I", "C", and some simple shapes, they can be packed in rolls. 400-600 meters/roll.
Delivery details: shipped in 10-20 working days after receiving the deposit

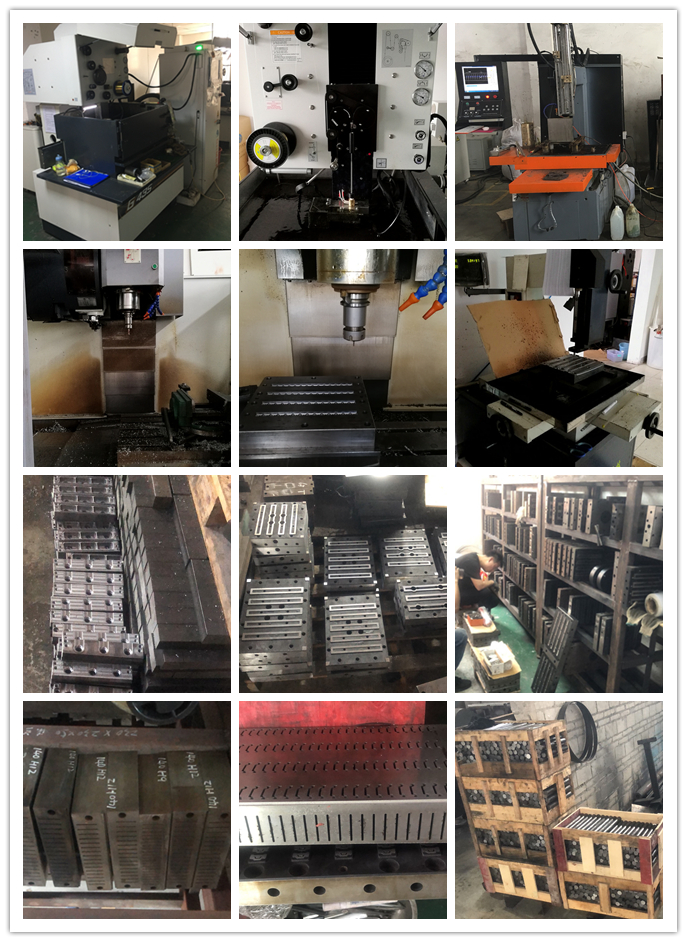

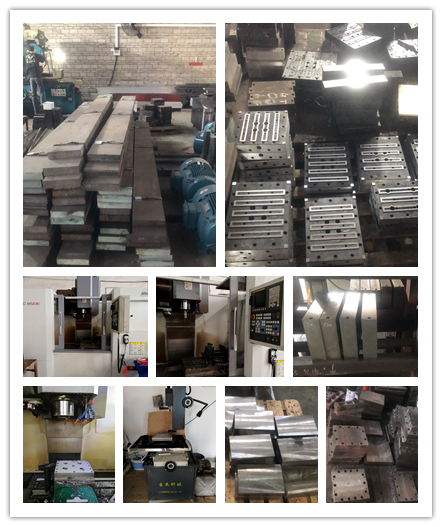

Our Service&Company
