Extruding Polyamide 66 Material Thermal Barrier Tape With Customized Shape Used In Aluminum Window Profile

Suzhou Polywell Engineering Plastics Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Extruding Polyamide 66 Material Thermal Barrier Tape With Customized Shape Used In Aluminum Window Profile

Place of Origin : Jiangsu, China (Mainland)

Brand Name : Polywell

Model Number : I,C,T,CT,HK

Supply Ability : 100000 meters per day

Packaging Details : Linear or Roll

MOQ : 5000 meters

Price : $0.20 - $0.4 / Meter

Payment Terms : T/T, Western Union, MoneyGram

Delivery Time : 15-20 working days

Certification : SGS

Plastic Modling Type : Extruding

Color : Black

Application : Thermal break aluminum window

Density : 1.25-1.35 g/cm3

Size : Customized

Transport package : Plywood case / pallet

Contact Now

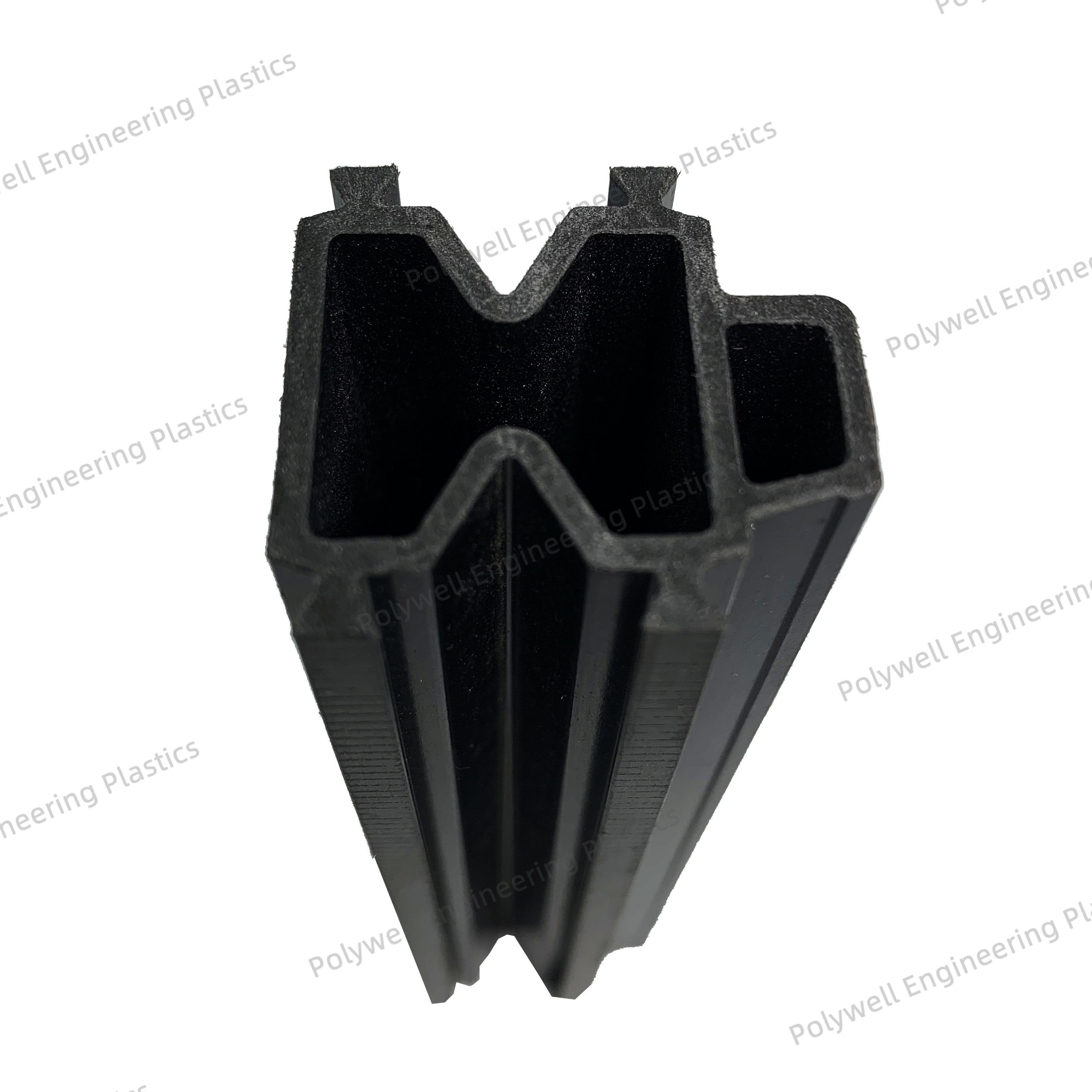

Polyamide 66 Material Thermal Barrier Tape With Customized Shape Used In Aluminum Window Profile

What is the best thermal break?

As an energy-saving, polyamide thermal break profile is the best thermal break material for aluminum profiles connections. Boasting high compressive strength, polyamide thermal break profile is a premier thermal bridging solution that won't compromise a structure's integrity.

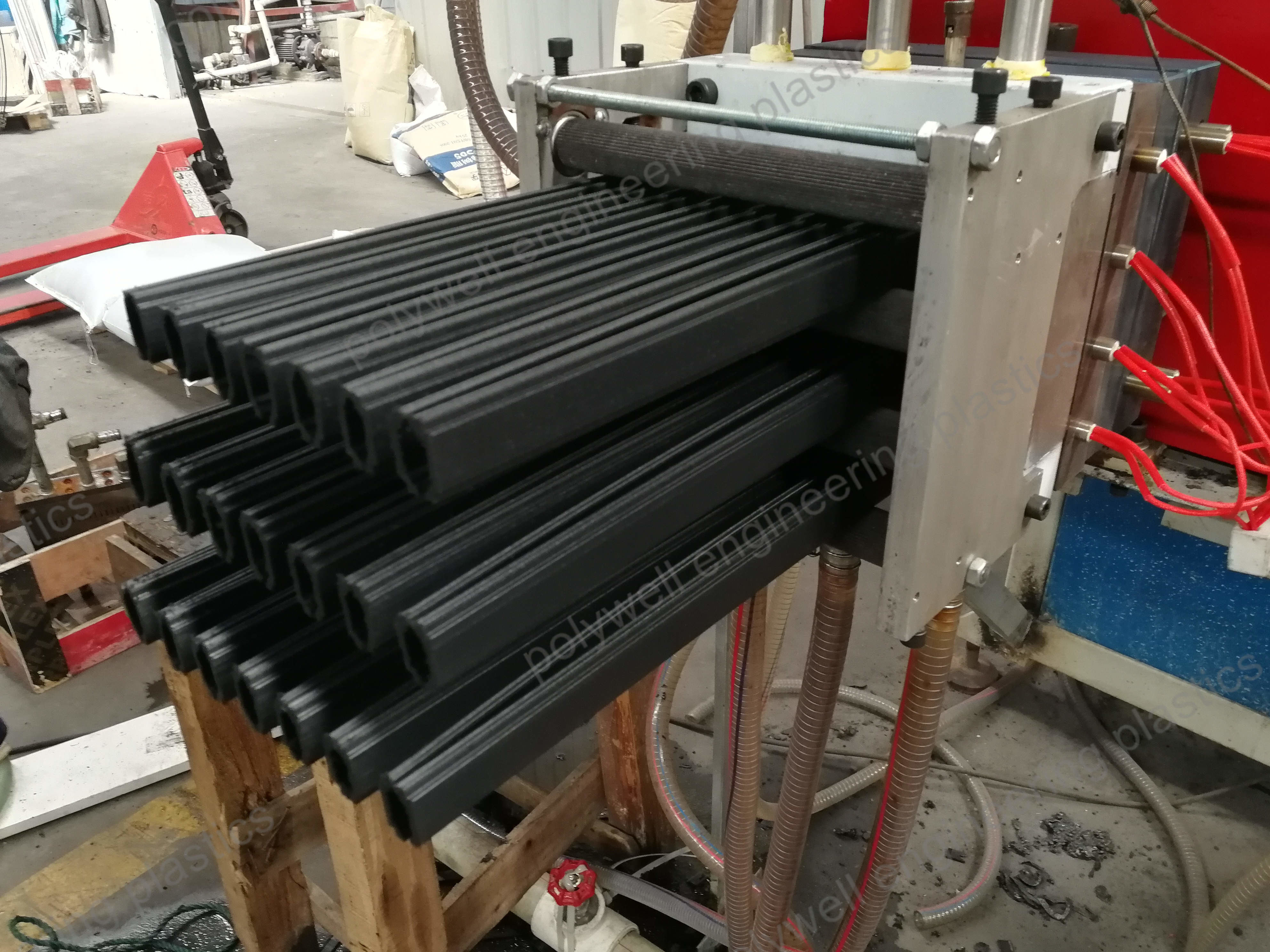

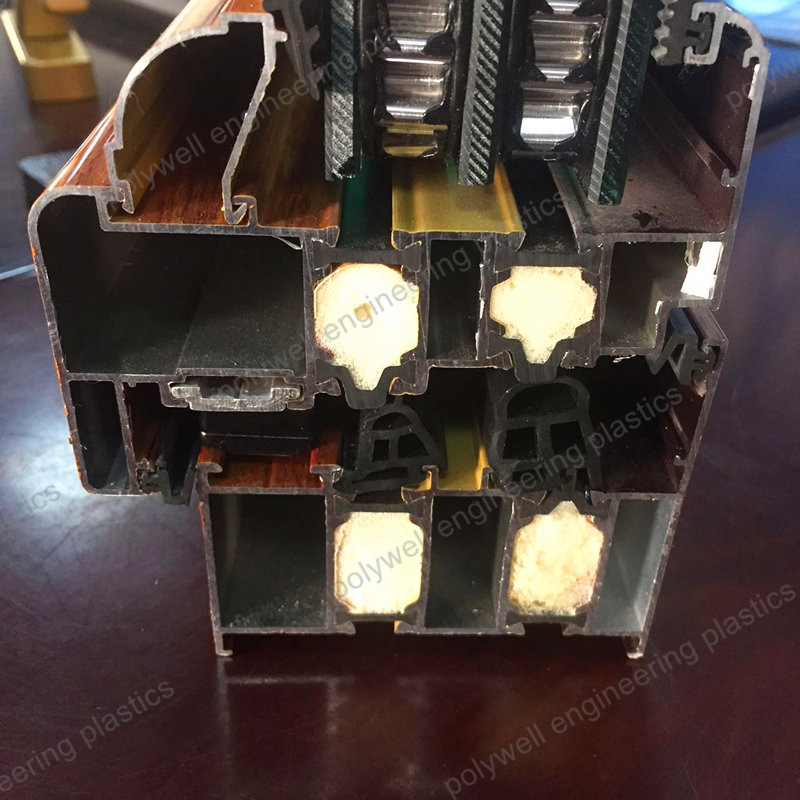

Extruding Polyamide 66 Material Thermal Barrier Tape With Customized Shape Used In Aluminum Window Profile

What does a thermal break do?

A thermal break is defined as a material with low thermal conductivity placed in an extrusion with the purpose of reducing the flow of thermal energy (heat). In aluminum windows, three types of thermal breaks are used. A standard pocket thermal break has been used in the window industry for decades.

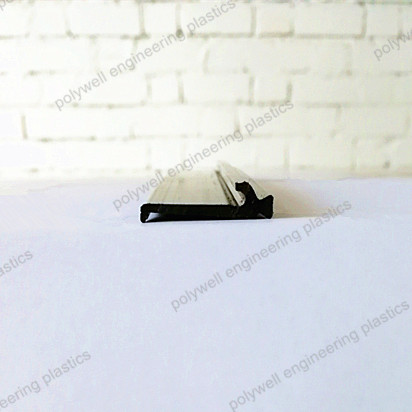

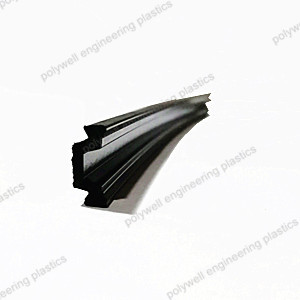

The shape C thermal barrier polyamide strip can prevent the window frame from dust and water, has a better mechanical performance, is the first generation and easiest shape of insulating strips.

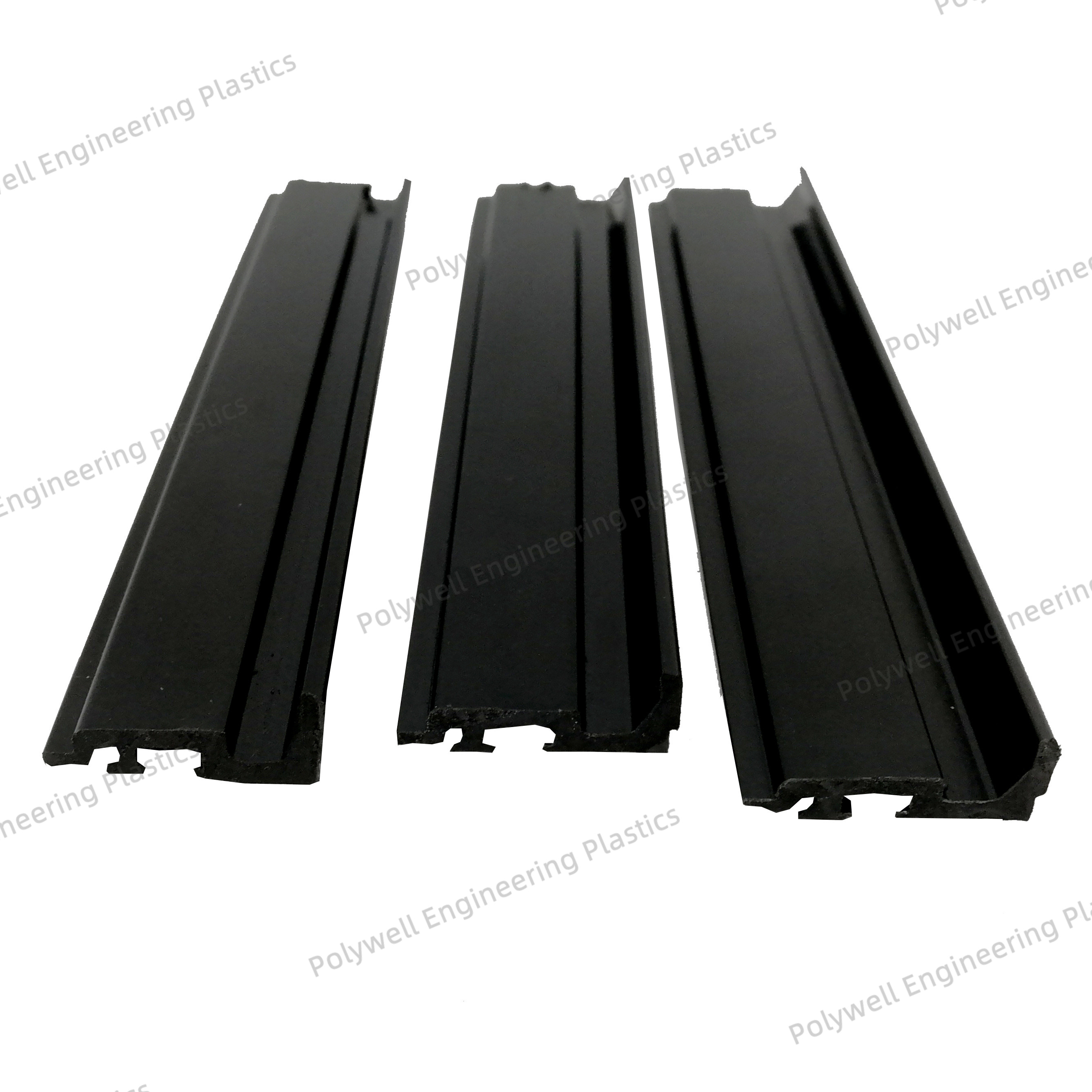

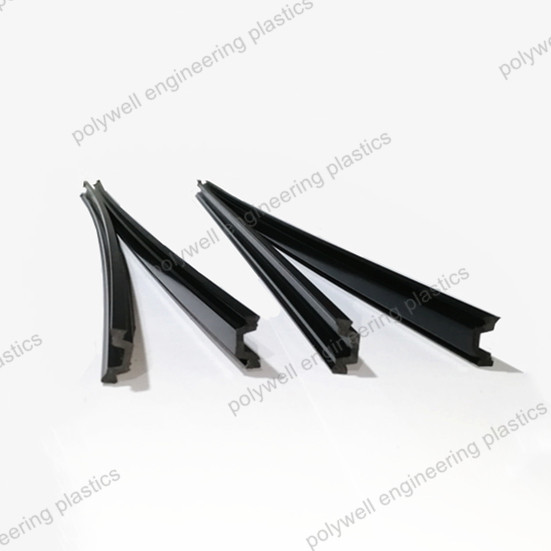

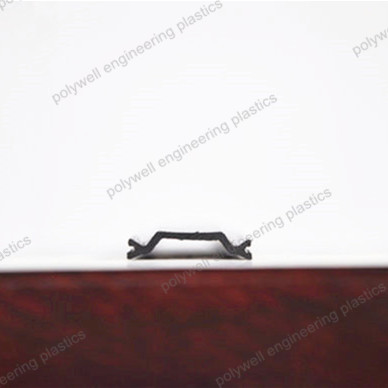

For the shape C, we can provide the following size or customize according to customers' requirements.
Extruding Polyamide 66 Material Thermal Barrier Tape With Customized Shape Used In Aluminum Window Profile
Extruding Polyamide 66 Material Thermal Barrier Tape With Customized Shape Used In Aluminum Window Profile Extruding Polyamide 66 Material Thermal Barrier Tape With Customized Shape Used In Aluminum Window Profile

Extruding Polyamide 66 Material Thermal Barrier Tape With Customized Shape Used In Aluminum Window Profile Extruding Polyamide 66 Material Thermal Barrier Tape With Customized Shape Used In Aluminum Window Profile

Can polyamide strips thermally break aluminum extrusion assemblies?

Yes.

Structural insulating polyamide strips have been utilized for thermally breaking aluminum extrusion assemblies for over 30 years and have been in use in north america for over a decade. Polyamide strips are available with many configurations to meet different performance specifications. Creating a thermal break utilizing a polyamide strip system entails a 3 step process.

1. Profile knurling

2. Strip insertion

3. Crimping

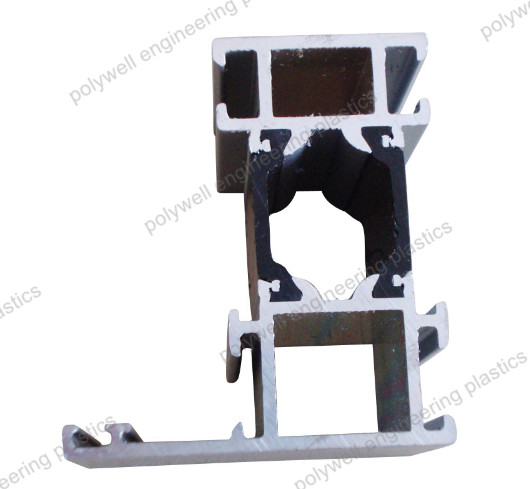

Application

It is mainly used in insulation broken bridge aluminium products, helping to reduce heat loss or heat gain through the aluminum, and has better performance in terms of power usage.

Extruding Polyamide 66 Material Thermal Barrier Tape With Customized Shape Used In Aluminum Window Profile Extruding Polyamide 66 Material Thermal Barrier Tape With Customized Shape Used In Aluminum Window Profile

Extruding Polyamide 66 Material Thermal Barrier Tape With Customized Shape Used In Aluminum Window Profile

Product Performance

Item

Unit

GB/T 23615.1-2009

PW-Technical specification

Density

g/cm3

1.3±0.05

1.28-1.35

Linear expansion coefficient

K-1

(2.3-3.5)×10-5

(2.3-3.5)×10-5

Vicat softening temperature

ºC

≥230ºC

≥233ºC

Melting point

ºC

≥240

≥240

Testing for tensile cracks

-

No cracks

No cracks

Shore hardness

-

80±5

80-85

Impact strength(Unnotched)

KJ/m2

≥35

≥38

Tensile strength(longitudinal)

MPa

≥80a

≥82a

Elasticity modulus

MPa

≥4500

≥4550

Elongation at break

%

≥2.5

≥2.6

Tensile strength(transverse)

MPa

≥70a

≥70a

High temperature tensile strength(transverse)

MPa

≥45a

≥47a

Low temperature tensile strength(transverse)

MPa

≥80a

≥81a

Water resistance tensile strength(transverse)

MPa

≥35a

≥35a

Aging resistance tensile strength(transverse)

MPa

≥50a

≥50a

1. Sample water content less than 0.2% by weight.
2. Norm laboratory condition:(23±2)ºC and (50±10)% relative humidity.
3. The specifications marked with "a" only applies to I-shape strip otherwise, the specifications concluded between supplier and buyer through consultation, shall be written in contract or purchase order.

Extruding Polyamide 66 Material Thermal Barrier Tape With Customized Shape Used In Aluminum Window Profile Extruding Polyamide 66 Material Thermal Barrier Tape With Customized Shape Used In Aluminum Window Profile

Package & Delivery

Packaging details:

For all shapes, they could be packaged in linear, the length will be 6 meters or customized.

For the some simple shapes like 'I' and 'C', they can be packed in rolls. 400-600 meters/roll.


Delivery details:

shipped in 10-15 working days after receiving the payment

Extruding Polyamide 66 Material Thermal Barrier Tape With Customized Shape Used In Aluminum Window Profile

Our Service

Before sales

1. introduce products in detail
2. recommend suitable solutions
3. provide with reference information

During manufacturing

1. provide with layout and engineering conditions
2. inform the processing status
3. offer related documents

After Sales

1. provide installation, commissioning and training
2. offer spare parts
3. Provide with necessary technical support

FAQ

  • About Sample
  • Sample is Free, but the express fee is collect or you pay us the cost in advance.
  • About MOQ
  • For the polyamide granules, MOQ is 1 ton. For the thermal break strips, MOQ is 5,000 meters.
  • About Customizing Special shape of polyamide Profiles and its period
  • You can customize the special shape of polyamide strips. If we didn't meet this shape before, we will make new mold for you, and you should pay for the mold.
  • About Customizing Package Style and Marks
  • You can customize the package style and marks.
  • Why your price is higher/lower than others?
  • For years specializing in polyamide granules and thermal break strips has bestowed us experienced and skilled technical workers and production workers. We promise the stability of products and the high-quality of raw material. Furthermore, we can provide technical support from raw material to the final appliance. Believe in that you can get better products and service with lower price.
  • About warranty
  • We are confident in our products, and pack them well before delivery, so usually you will receive your order in good condition. . Any quality issue, we will deal with it immediately.
