Product Description:

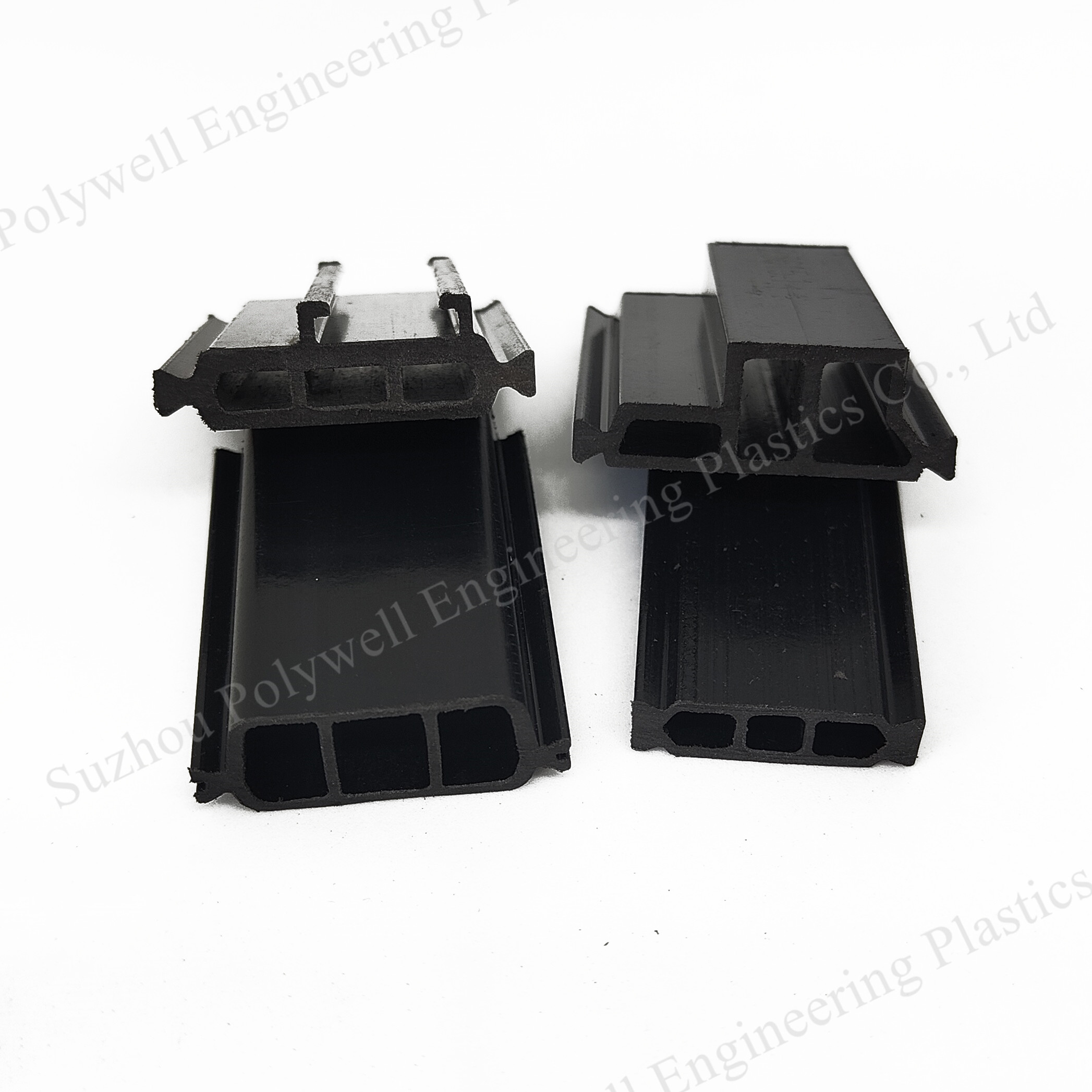

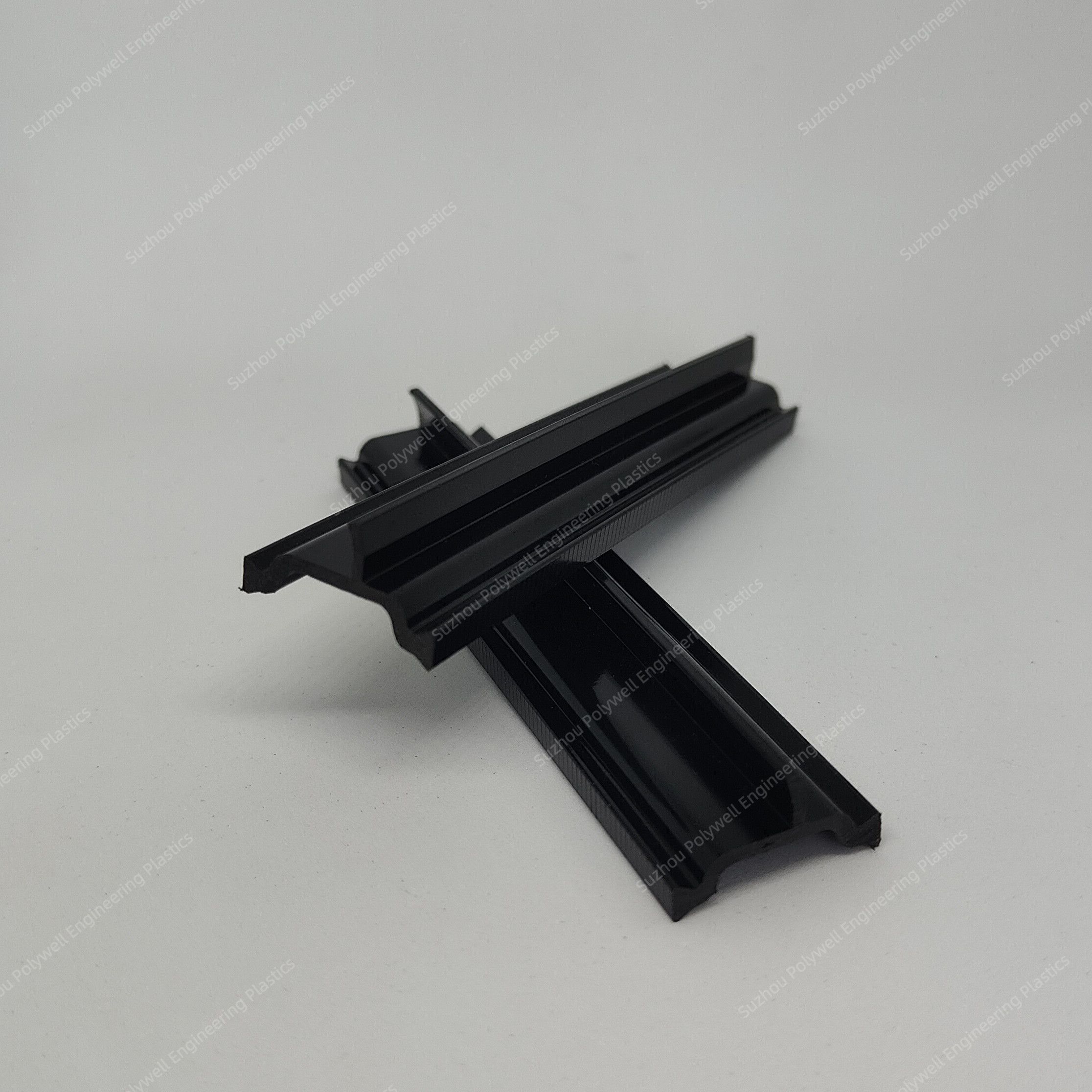

Thermal Break Strip
Thermal Break Strip is a kind of polyamide strip that is designed to provide an excellent thermal break between two surfaces. It is a highly reliable product that is customized to meet your exact requirements, including length, thickness and package. It is made of PA66GF25 material, which has high strength, corrosion resistance, heat resistance and high temperature resistance. It is widely used in many applications and is the ideal choice for thermal breaks in electrical and industrial applications. With its superior performance, it ensures optimal safety and reliability.
Insulation of aluminum doors and windows sealed with insulation strip is the one with the glass fiber reinforced polyamide nylon (PA66), referred to as Nylon 66 insulation strips, expansion coefficient is small, heat-resistant, and anti-aging properties.
Features:
- Product Name: Thermal Break Strip
- Shape: Customized
- Application: Doors/ Windows/ Machinery
- Material: PA66GF25
- Width: Customized
- Length: Customized
- Features: Thermal Break Strip, Heat Insulation Strip, Heat Insulation Material
Technical Parameters:
| Item | Unit | GB/T 23615.1-2009 | PW-Technical specification |
| Density | g/cm3 | 1.3±0.05 | 1.28-1.35 |
| Linear expansion coefficient | K-1 | (2.3-3.5)×10-5 | (2.3-3.5)×10-5 |
| Vicat softening temperature | ºC | ≥230 | ≥233 |
| Melting point | ºC | ≥240 | ≥240 |
| Testing for tensile cracks | - | No cracks | No cracks |
| Shore hardness | - | 80±5 | 80-85 |
| Impact strength(Unnotched) | KJ/m2 | ≥35 | ≥38 |
| Tensile strength(longitudinal) | MPa | ≥80a | ≥82a |
| Elasticity modulus | MPa | ≥4500 | ≥4550 |
| Elongation at break | % | ≥2.5 | ≥2.6 |
| Tensile strength(transverse) | MPa | ≥70a | ≥70a |
| High temperature tensile strength(transverse) | MPa | ≥45a | ≥47a |
| Low temperature tensile strength(transverse) | MPa | ≥80a | ≥81a |
| Water resistance tensile strength(transverse) | MPa | ≥35a | ≥35a |
| Aging resistance tensile strength(transverse) | MPa | ≥50a | ≥50a |
1. Sample water content less than 0.2% by weight.
2. Norm laboratory condition:(23±2)ºC and (50±10)% relative humidity.
3. The specifications marked with "a" only applies to I-shape strip otherwise, the specifications concluded between supplier and buyer through consultation, shall be written in contract or purchase order.
Features:
Polyamide thermal breaks are extruded in dry state but they absorb moisture from the environment after the production as time passes. Moisture level depend the following conditions:
- Ambient temperature
- Ambient humidity
- Storage period
During the summer time, when the temperature and humidity in storage area are higher than usual, the insulating profiles absorb more moisture than in the remaining seasons, even stored properly.
Support and Services:
1. introduce products in detail
2. recommend suitable solutions
3. provide with reference information
1. provide with layout and engineering conditions
2. inform the processing status
3. offer related documents
1. provide installation, commissioning and training
2. offer spare parts
3. Provide with necessary technical support
Package & Delivery:
Packaging details:For all specifications/shapes, they could be packaged in linear, the length will be 6 meters, or customized.
For the some simple strips such as shape "I" and "C", they can be packed in rolls. Usually 400-600 meters/roll.
Delivery details: shipped in 10-15 working days after payment
Our Company:

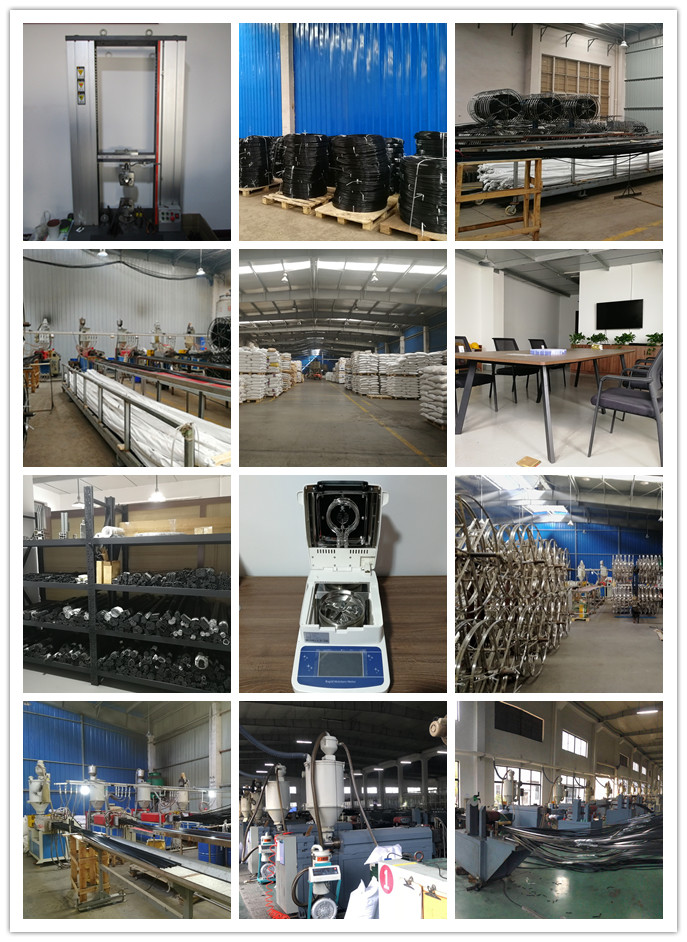

Suzhou Polywell Engineering Plastics Company is located in the city of Zhangjiagang, Jiangsu Province, China. Our company has devoted more than ten years to the research and development and production of nylon extruding profiles.
