25% Glass Fiber Reinforced PA66 Plastic Granules Black Or Customized Color

Name: 25 Glass Fiber Reinforced PA66 Plastic Granules Black Or Customized Color
Brand: Polywell
Price: 1 USD

25% Glass Fiber Reinforced PA66 Plastic Granules Black Or Customized Color Manufactures

Brand Name : Polywell

Model Number : PA66GF25

Place of Origin : China

MOQ : 1 ton

Price : Negotiation

Payment Terms : T/T

Supply Ability : 20 tons per day

Delivery Time : 10-15 working days

Packaging Details : 25 kg per bag

Certification : SGS

Color : Black or Customized

Material : GFRP, Polyamide

Characteristics : High strengh and abrasion resistant

Application : Thermal Break Strips

Plastic Properties After Heated : Thermoplastic Plastics

Density : 1.25-1.35 g/cm3

Port : Shanghai

Filler : Glass Fiber Reinforced

Shape : Granules

Contact Now

25% Glass Fiber Reinforced Black Or Customized Color PA66 Plastic Granules

Product Description

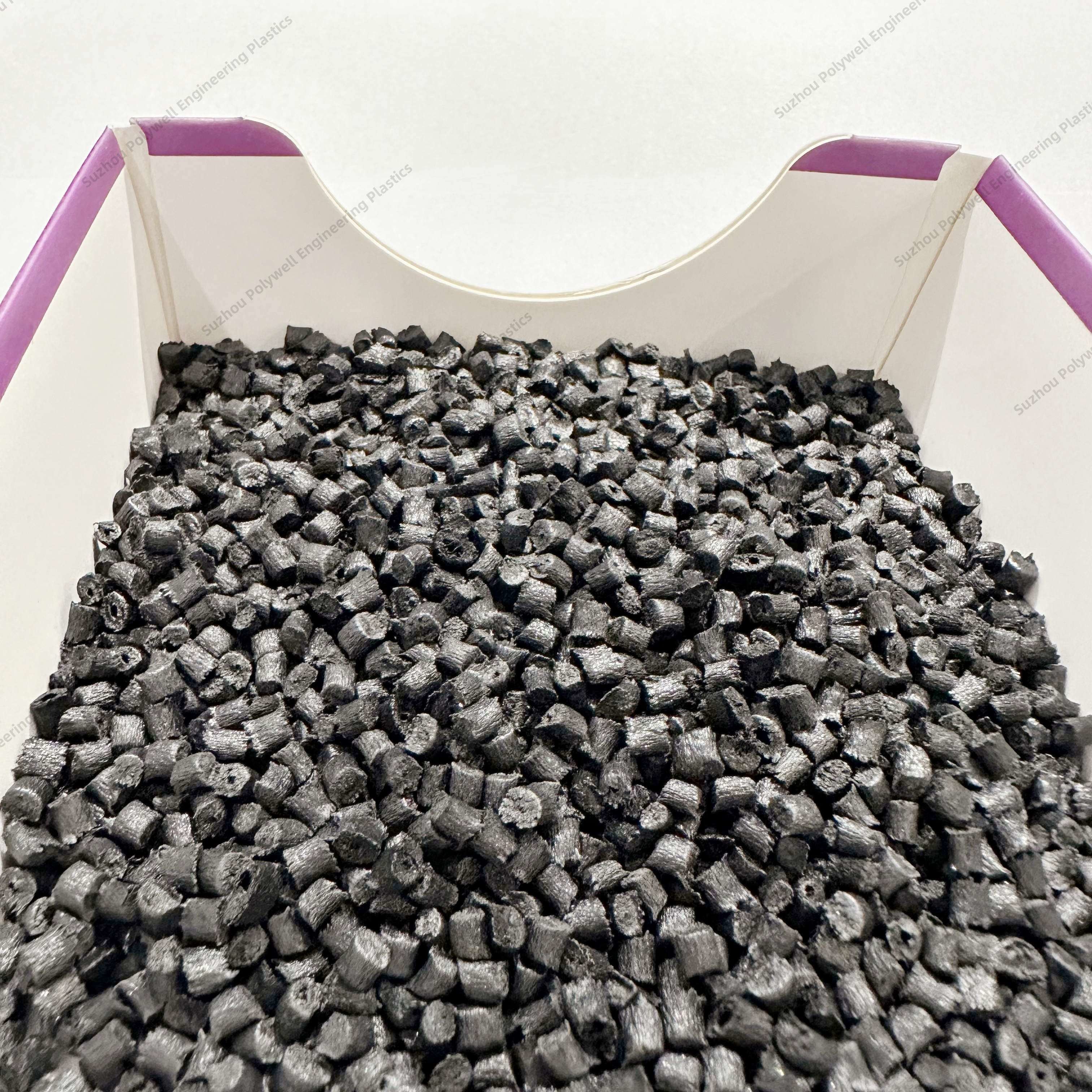

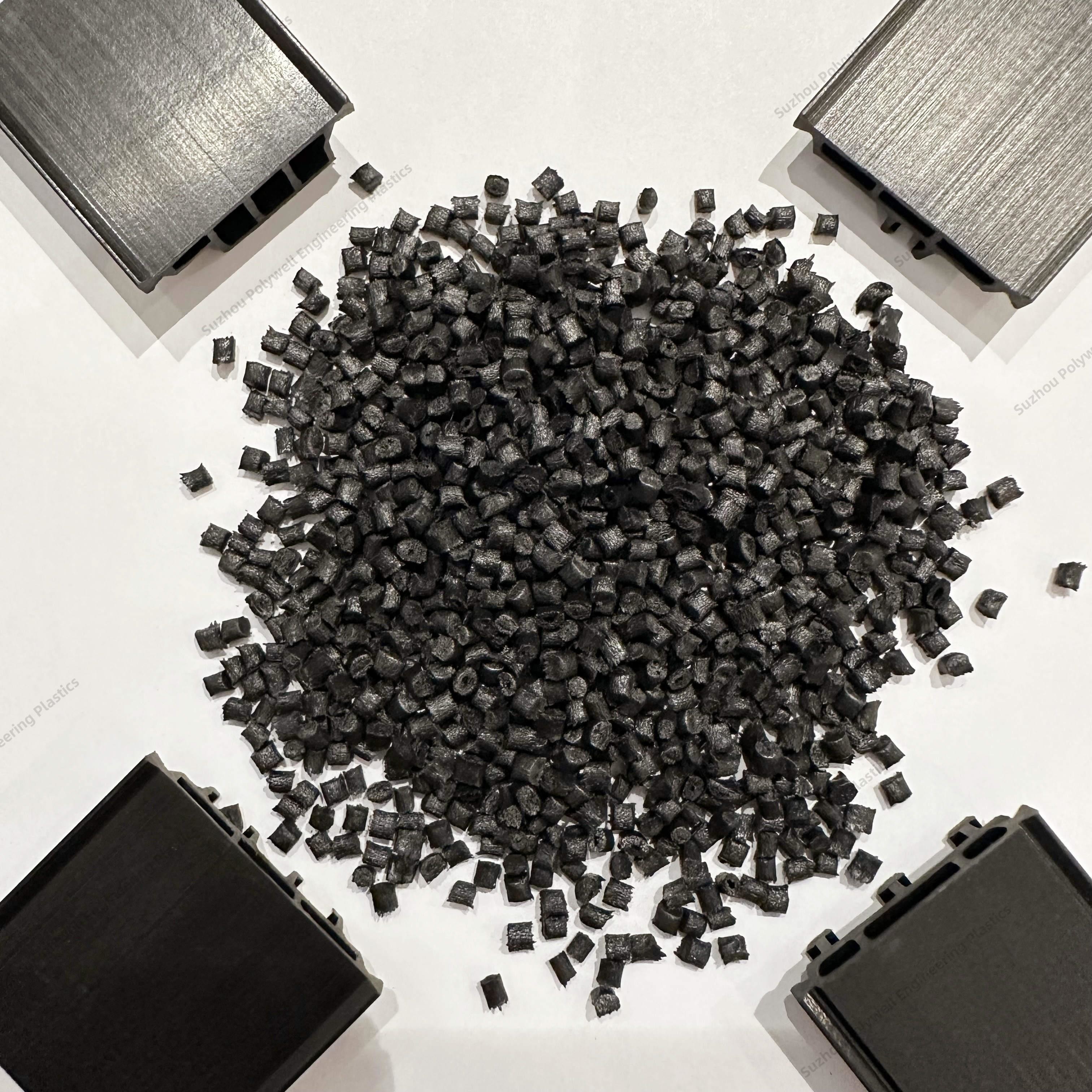

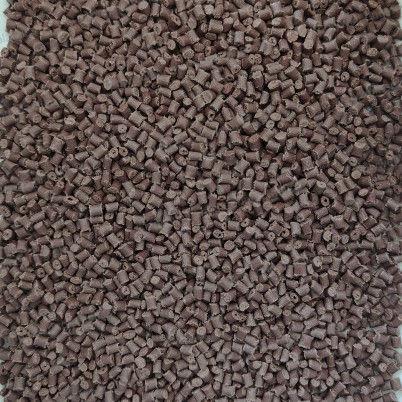

-PA66GF25 granules are reinforced by fiberglass. The final product performance of this raw material can meet the national standard.

-PA66GF25 granules are based on PA66 resin. Then the granules are formed by twin-screw extrusion machine after adding fiberglass, efficient flame retardants and various additives.
25% Glass Fiber Reinforced PA66 Plastic Granules Black Or Customized Color

Application

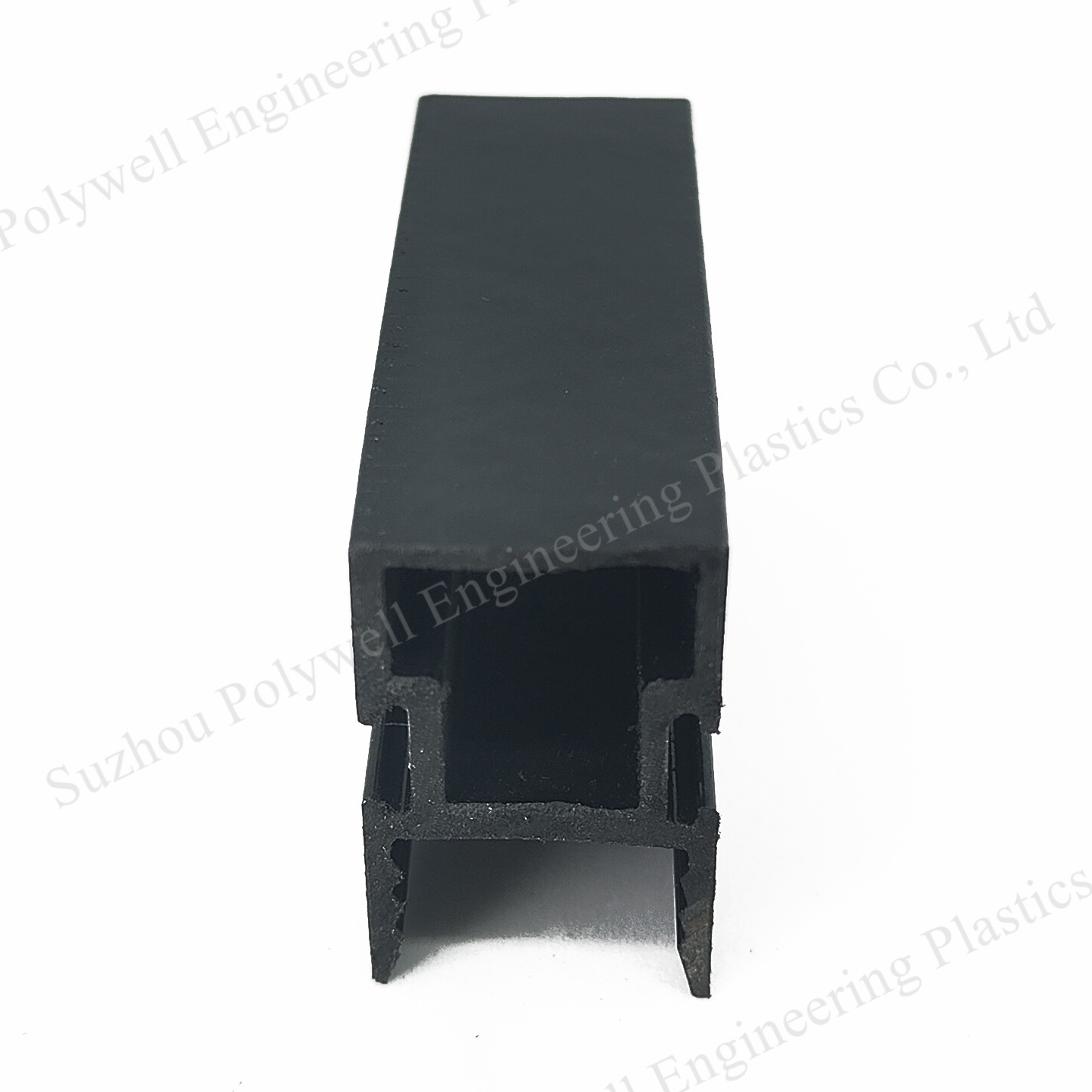

The PA66 granules with fiber glass are mainly used in thermal break strips, which are used in aluminum windows and doors. Our granules have good fluidity thus guaranteeing your smooth production. The good raw material can reduce the rate of rejects, and can produce high quality stips.
25% Glass Fiber Reinforced PA66 Plastic Granules Black Or Customized Color

Detailed Infomation

free sample support and short lead time

high mechanical strength

high toughness

high softening point

good wear resistance

self-lubrication

long-term work at higher temperatures

high CTI value

excellent electrical insulation

low smoke and toxicity characteristics

25% Glass Fiber Reinforced PA66 Plastic Granules Black Or Customized Color

Product Parameters

Item	Unit	GB/T 23615.1-2009	PW-Technical specification
Density	g/cm3	1.3±0.05	1.28-1.35
Linear expansion coefficient	K-1	(2.3-3.5)×10-5	(2.3-3.5)×10-5
Vicat softening temperature	ºC	≥230ºC	≥233ºC
Melting point	ºC	≥240	≥240
Testing for tensile cracks	-	No cracks	No cracks
Shore hardness	-	80±5	80-85
Impact strength(Unnotched)	KJ/m2	≥35	≥38
Tensile strength(longitudinal)	MPa	≥80a	≥82a
Elasticity modulus	MPa	≥4500	≥4550
Elongation at break	%	≥2.5	≥2.6
Tensile strength(transverse)	MPa	≥70a	≥70a
High temperature tensile strength(transverse)	MPa	≥45a	≥47a
Low temperature tensile strength(transverse)	MPa	≥80a	≥81a
Water resistance tensile strength(transverse)	MPa	≥35a	≥35a
Aging resistance tensile strength(transverse)	MPa	≥50a	≥50a

1. Sample water content less than 0.2% by weight.
2. Norm laboratory condition:(23±2)ºC and (50±10)% relative humidity.
3. The specifications marked with "a" only applies to I-shape strip otherwise, the specifications concluded between supplier and buyer through consultation, shall be written in contract or purchase order.
