Soundproof Heat Insulation Thermal Break PA66 GF25 Strips For Aluminum Windows And Doors

Name: Soundproof Heat Insulation Thermal Break PA66 GF25 Strips For Aluminum Windows And Doors
Brand: Polywell
Price: 1 USD

Soundproof Heat Insulation Thermal Break PA66 GF25 Strips For Aluminum Windows And Doors Manufactures

Brand Name : Polywell

Model Number : PW-CT

Certification : SGS

Place of Origin : China

MOQ : 5000 meters

Price : Negotiation

Payment Terms : T/T, Western Union

Supply Ability : 100000 meters per day

Delivery Time : 10-15 working days

Packaging Details : linear or roll

Plastic Modling Type : Extruding

Main Raw Material : PA66 reinforced by glass fiber

Color : Black

Size : Customized

OEM Service : Available

Port : Shanghai

Application : Thermal break aluminum

Length : 6 meters/piece

Density : 1.25-1.35 g/cm3

Refractoriness : More than 240°C

Certificate : SGS

Product Name : CT Shape Extruded Nylon Thermal Break Strips for Aluminun Windows

Contact Now

Soundproof Heat Insulation Thermal Break PA66 GF25 Strips For Aluminum Windows And Doors

Product Description

The polyamide strip is a moldable composite material. Its fibers are oriented in all three dimensions to ensure appropriate strength. As such, manufacturers can use these strips across all types of fenestration, including oversized and impact-resistant systems. Therefore, polyamide thermal barriers are best for thermal break windows.

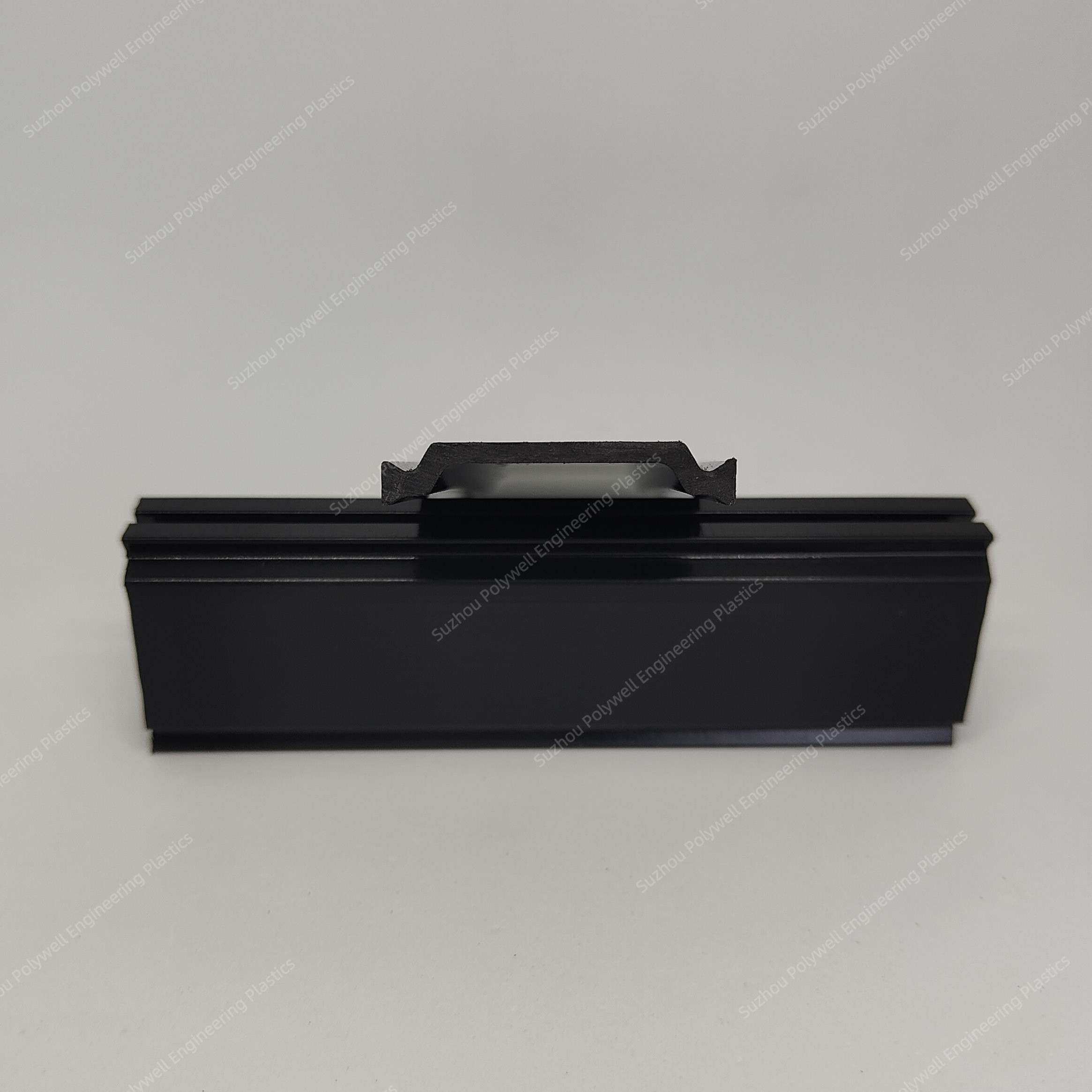

The shape C thermal barrier polyamide strip can protect the window frame from dust and water, has better mechanical performance, and is the first generation and easiest shape of insulating strips.
For the shape C, we can provide the following size or customize according to customers' requirements.

Soundproof Heat Insulation Thermal Break PA66 GF25 Strips For Aluminum Windows And Doors

Product Performance

Item	Unit	GB/T 23615.1-2009	PW-Technical specification
Density	g/cm3	1.3±0.05	1.28-1.35
Linear expansion coefficient	K-1	(2.3-3.5)×10^-5	(2.3-3.5)×10^-5
Vicat softening temperature	ºC	≥230ºC	≥233ºC
Melting point	ºC	≥240	≥240
Testing for tensile cracks	-	No cracks	No cracks
Shore hardness	-	80±5	80-85
Impact strength(Unnotched)	KJ/m2	≥35	≥38
Tensile strength(longitudinal)	MPa	≥80^a	≥82^a
Elasticity modulus	MPa	≥4500	≥4550
Elongation at break	%	≥2.5	≥2.6
Tensile strength(transverse)	MPa	≥70^a	≥70^a
High temperature tensile strength(transverse)	MPa	≥45^a	≥47^a
Low temperature tensile strength(transverse)	MPa	≥80^a	≥81^a
Water resistance tensile strength(transverse)	MPa	≥35^a	≥35^a
Aging resistance tensile strength(transverse)	MPa	≥50^a	≥50^a

1. Sample water content is less than 0.2% by weight.
2. Norm laboratory conditions: (23±2)ºC and (50±10)% relative humidity.
3. The specifications marked with "a" only apply to I-shape strip otherwise, the specifications concluded between supplier and buyer through consultation, shall be written in contract or purchase order.

Package & Delivery

Packaging details:For all specifications/shapes, they could be packaged in linear, the length will be 6 meters, or customized.

For the Shape "I", "C", and some simple shapes, they can be packed in rolls. 400-600 meters/roll.
Delivery details: shipped in 10-15 working days after payment

Soundproof Heat Insulation Thermal Break PA66 GF25 Strips For Aluminum Windows And Doors

Advantages

high quality, competitive price, free sample support and short lead time, high mechanical strength, high toughness, high softening point, good wear resistance, self-lubrication, long-term work at higher temperatures, high CTI value, excellent electrical insulation, low smoke and toxicity characteristics.

Soundproof Heat Insulation Thermal Break PA66 GF25 Strips For Aluminum Windows And Doors

Our Service

Before sales

1. introduce products in detail
2. recommend suitable solutions
3. provide with reference information

During manufacturing

1. provide with layout and engineering conditions
2. inform the processing status
3. offer related documents

After Sales

1. provide installation, commissioning and training
2. offer spare parts
3. Provide with necessary technical support

FAQ

About Sample

Sample is Free, but the express fee is collect or you pay us the cost in advance.

About MOQ

For the polyamide granules, MOQ is 1 ton. For the thermal break strips, MOQ is 5,000 meters.

About Customizing Special shape of polyamide Profiles and its period

You can customize the special shape of polyamide strips. If we didn't meet this shape before, we will make new mold for you, and you should pay for the mold.

About Customizing Package Style and Marks

You can customize the package style and marks.

Why your price is higher/lower than others?

For years specializing in polyamide granules and thermal break strips has bestowed us experienced and skilled technical workers and production workers. We promise the stability of products and the high-quality of raw material. Furthermore, we can provide technical support from raw material to the final appliance. Believe in that you can get better products and service with lower price.

About warranty

We are confident in our products, and pack them well before delivery, so usually you will receive your order in good condition. Any quality issue, we will deal with it immediately.
