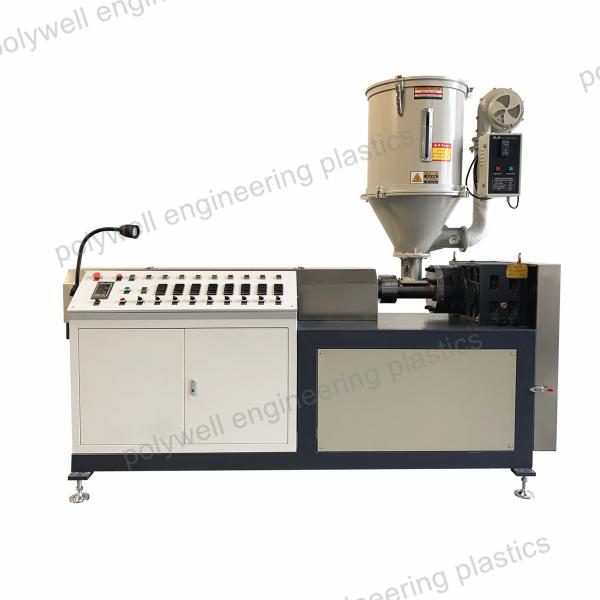

Automatic Plastic Forming Extruding Machine For PA66GF25 Heat Insulating Strips

Automatic Plastic Forming Extruding Machine For PA66GF25 Heat Insulating Strips

Product Introduction

PA66GF25 granules are dired and get into the machine barrel through the hopper. The granules are in rotary contact with the machine screw, and move towards the mold with the rotation of the screw.

As the gap of machine screw and barrel is small, the granules are heated in the gap under the process of moving forward. They are plasticizied to nylon molten state through the high temperature of the electric heating ring body. The molten state of nylon is diverted and shaped after entering the mold, and finally extruded into heat insulation strips.

Processing Technique
Nylon material → drying → heating → extrusion → stereotype → finished product

This equipment is assembled with precision fittings such as bi-metal screw, screw barrel, imported frequency converter, imported temperature control meter and high-precision gear box. It is an excellent equipment for producing PA66 nylon extruding Profile.

1. The main part of machinery adopts high-quality cemented carbide screw to ensure the high plasticization of PA66+GF25. The main engine is energy-saving and the speed is stable. The speed of the main and auxiliary machines can be synchronized.

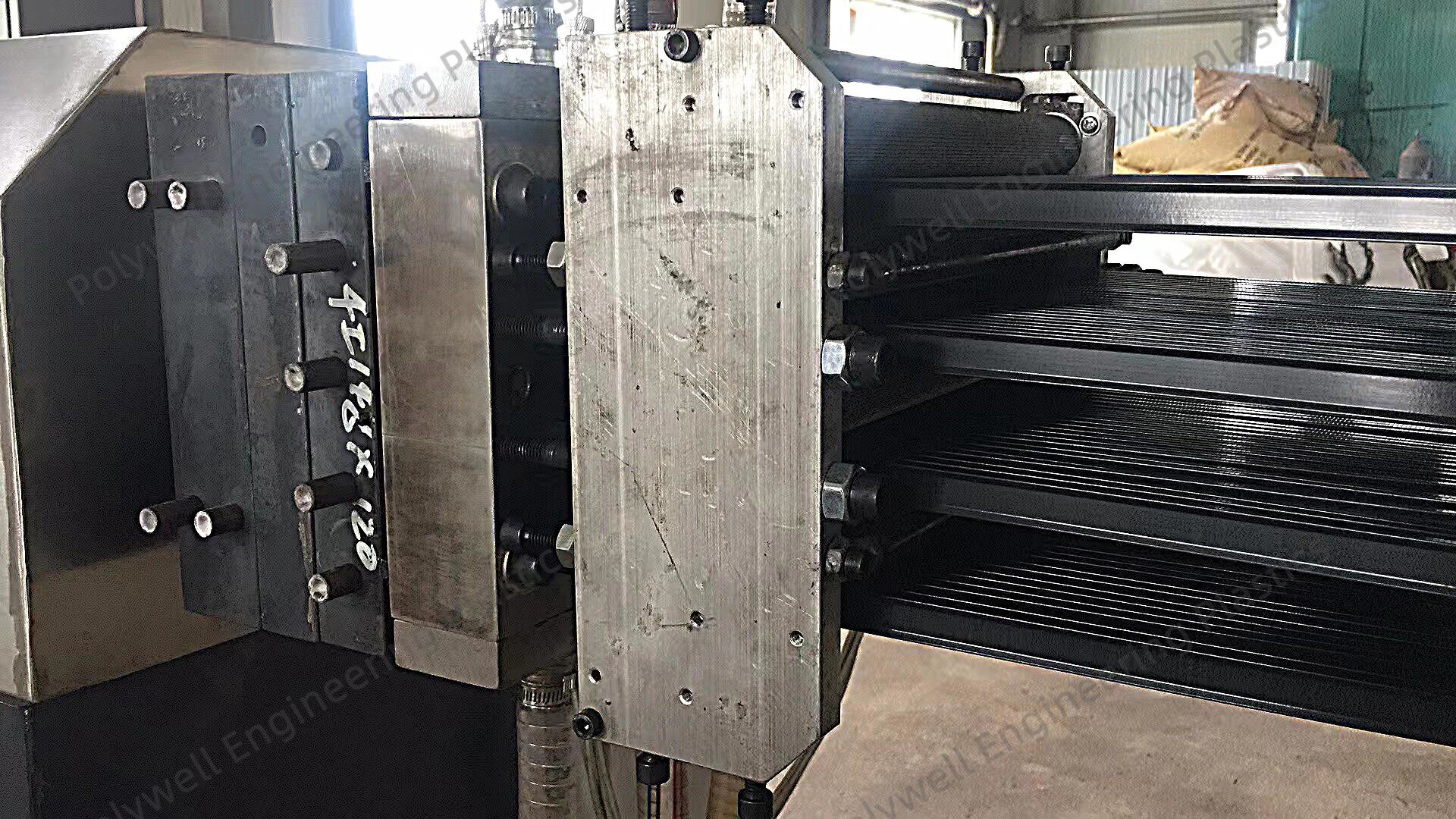

2. The die head is made according to German advanced technology, with short runner and no dead angle. The surface of the heat insulating strip is bright, with accurate tolerance and high strength.
3. Using imported temperature control meter, one meter controls one temperature control system to control the temperature accuracy to ±1C°.
4. Operating floor: stainless steel strip placement slot. Adjustable length 6 meters
5. Winding machine: The torque motor control system is used to adjust the winding tension. 500 meters or 1000 meters per roll.
6. The barrel is heated by stainless steel heater, withstanding 400 V.
7. The professional dryer makes the material and the hot air convect evenly, and the drying uniformity is good. Its thermal insulation structure prevents heat dissipation and promotes energy saving.

Parameters of Single Screw Reactive Extruder

PA66GF25 Polyamide Profiles Extrusion Machine Including

Why use polyamide strip as thermal barrier function?
1. Because polyamide strip including Polyamide and glass fiber, Its Strength can reach requirement for aluminium profile window, door, curtain and walls.
2. Conductivity of polyamide strip is very low, prohibit hot air or cold air transferred from outside to inside, energy saving product

Application of polyamide strip:

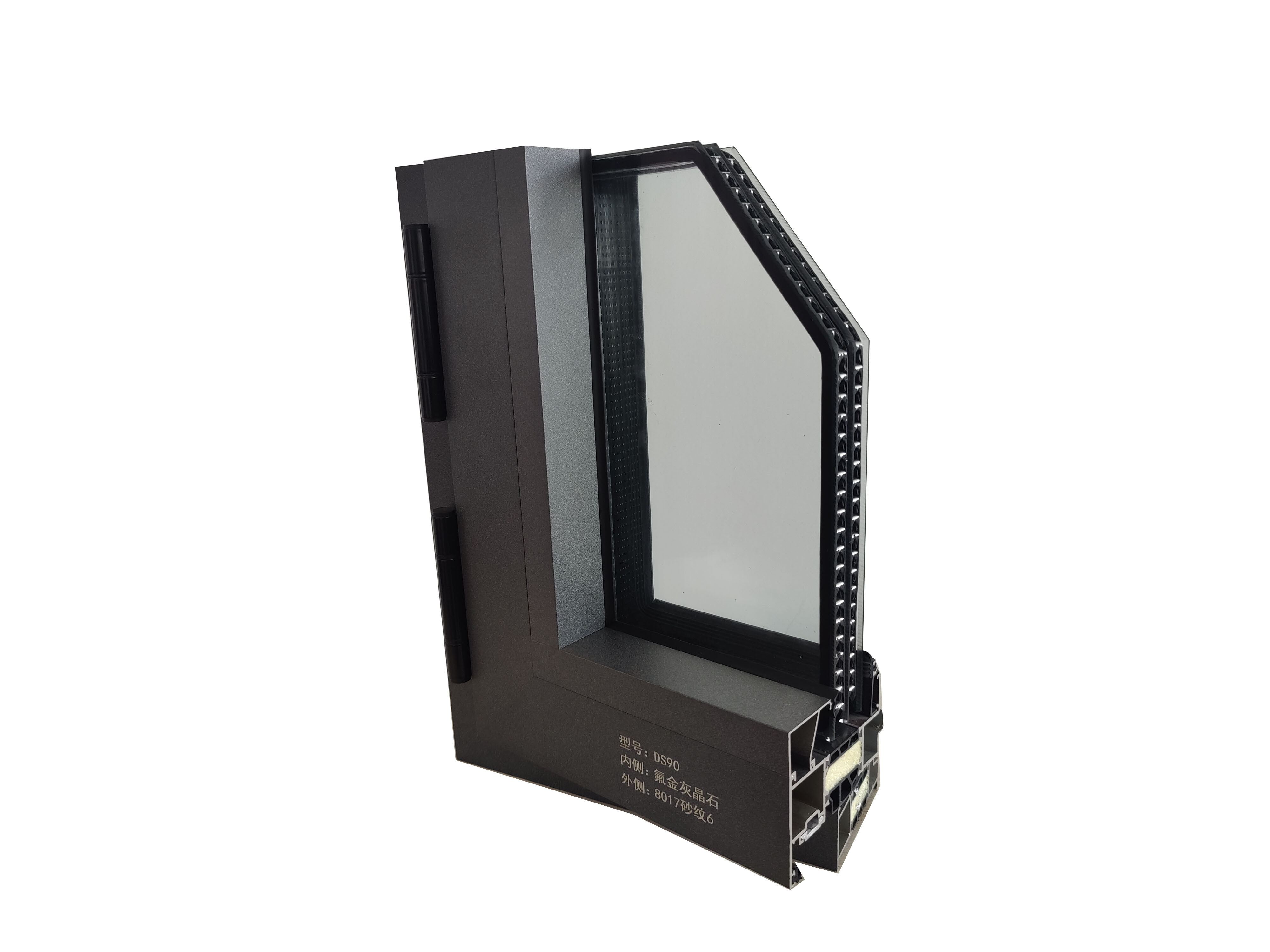

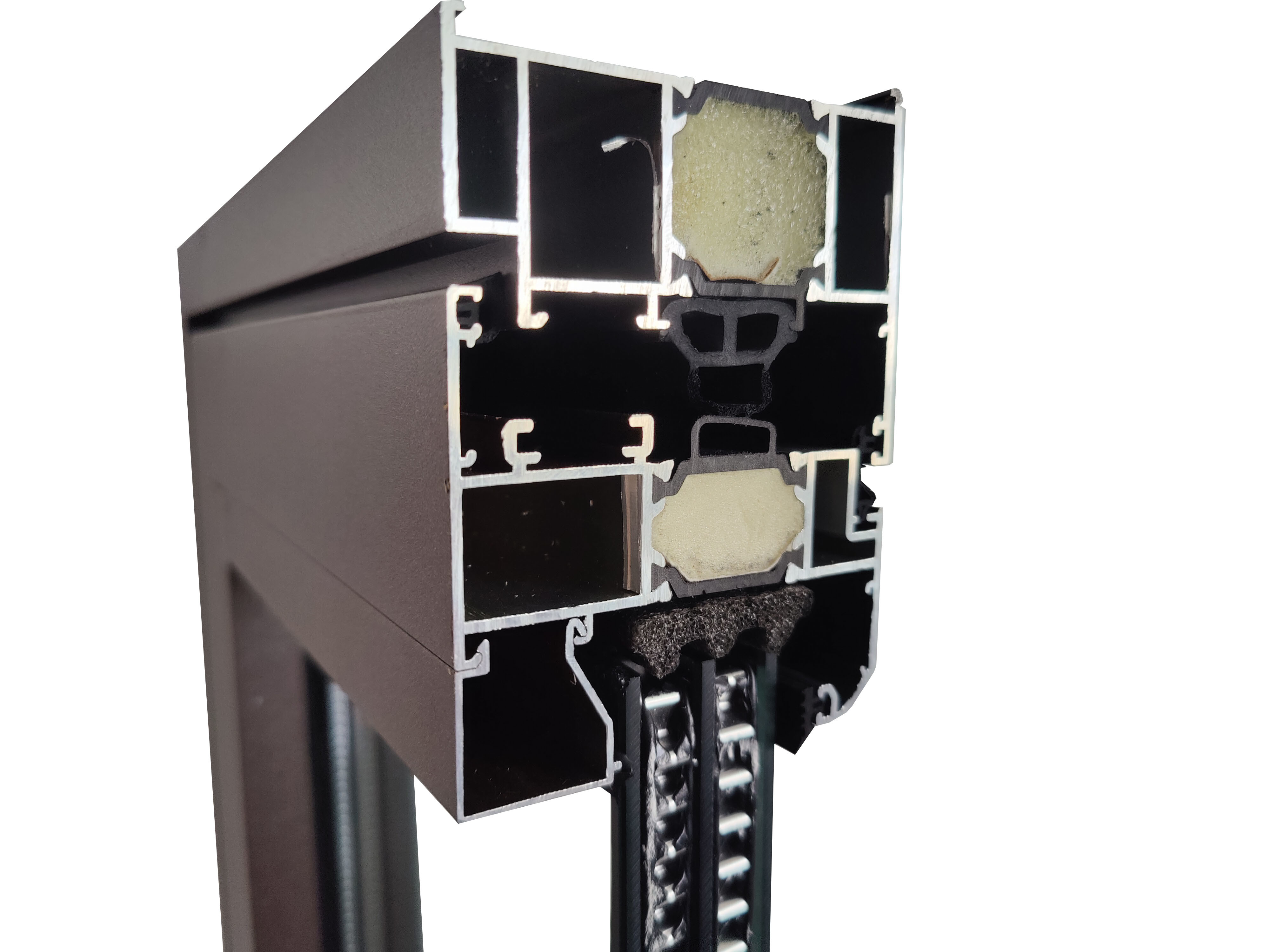

1. Used for thermal break aluminum window, door, curtain and walls
2. Many customer use thermal break aluminum profile to do big air conditioner to keep heat of cold air, then make use of energy saving

Our advantage:

1. We can make good quality strips moulds, including the complicated moulds.
2. We can supply the whole produce line, including raw material, Parallel twin-screw granulator and the Extruding machine of thermal barrier strip.

Our Service
Before sales
1. Introduce products in detail
2. Recommend suitable solutions
3. Provide with reference information
During manufacturing
1. Provide with layout and engineering conditions
2. Inform the processing status
3. Offer related documents
After Sales
1. Provide installation, commissioning and training
2. Offer spare parts
3. Provide with necessary technical support

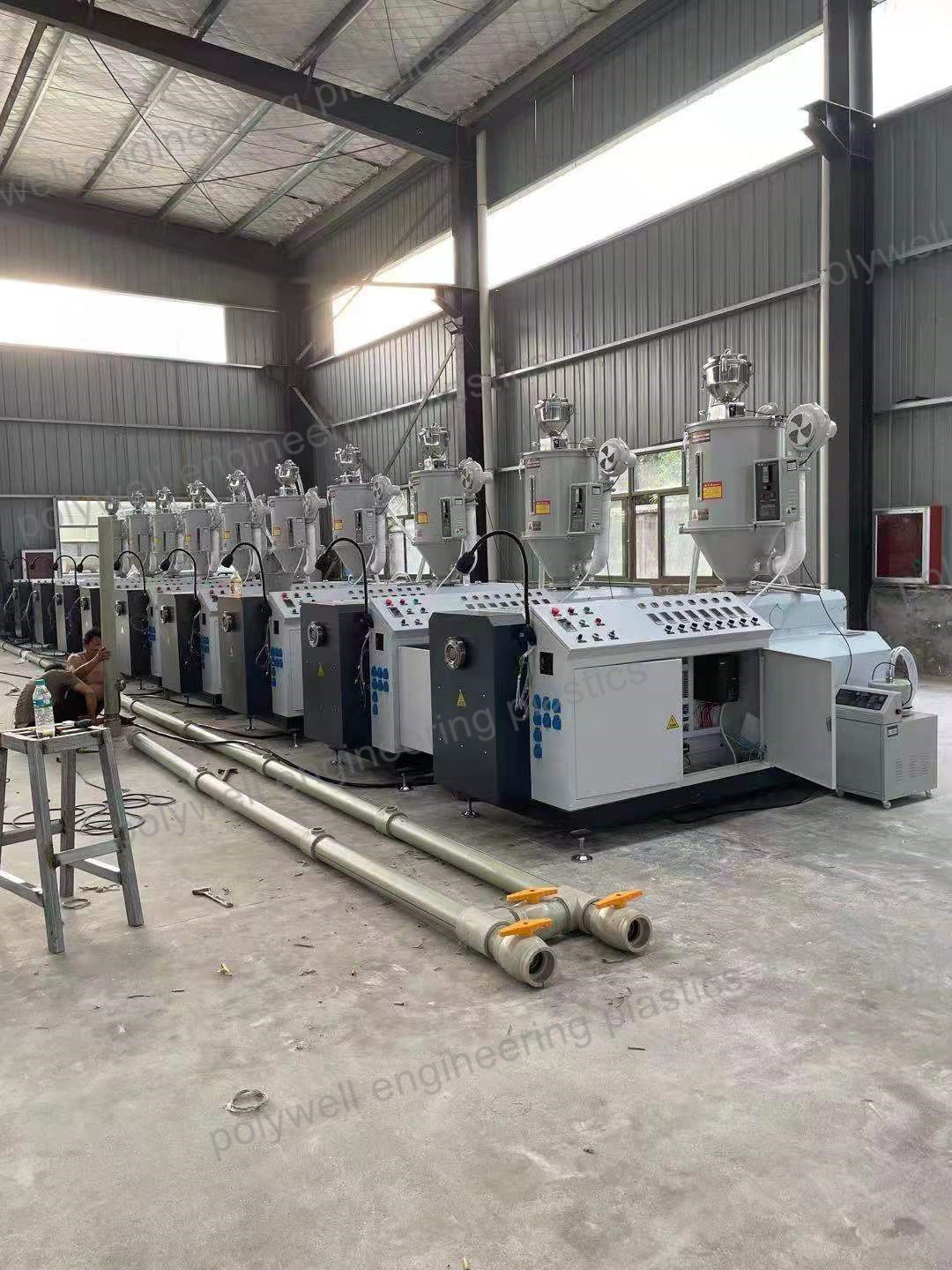

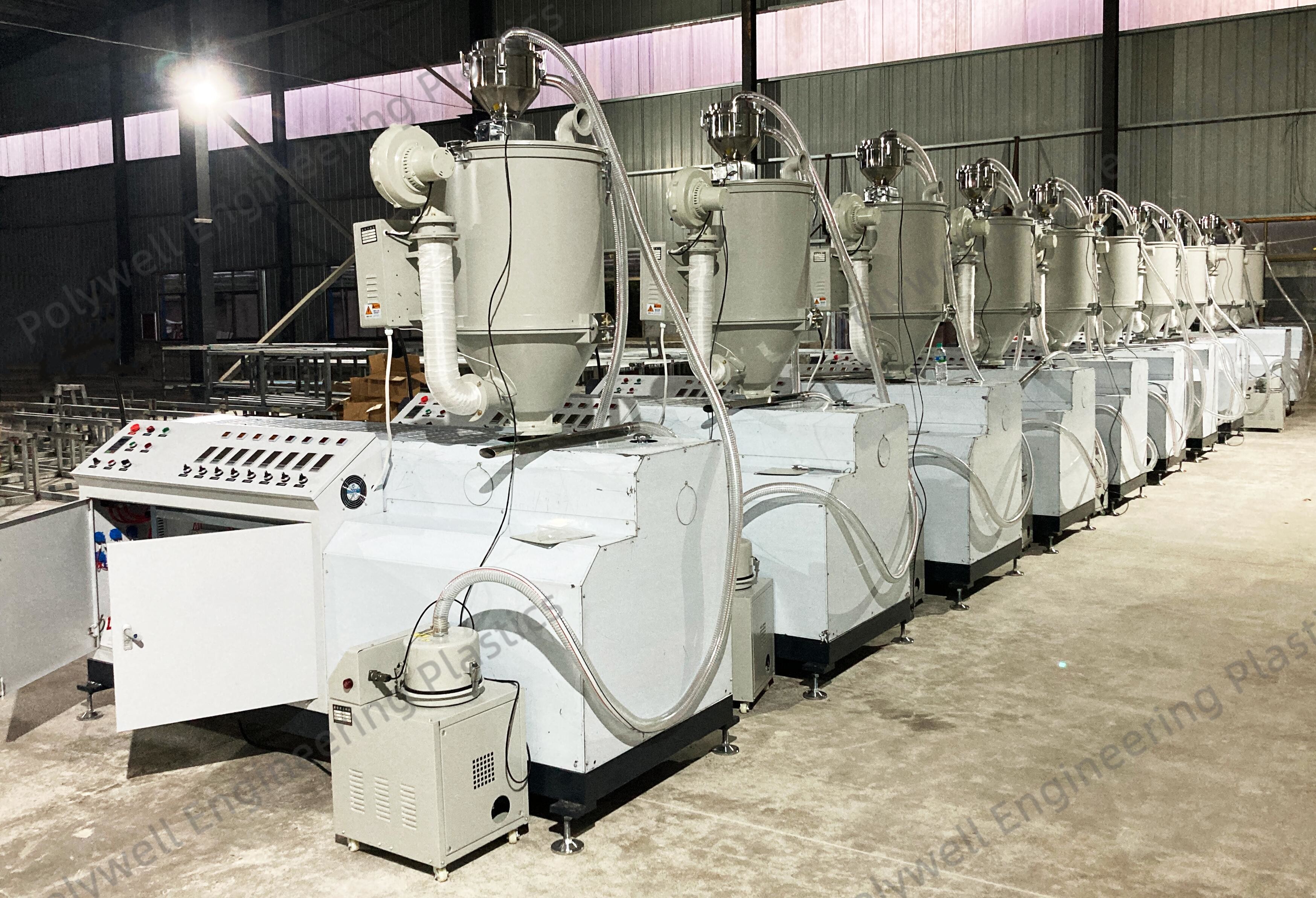

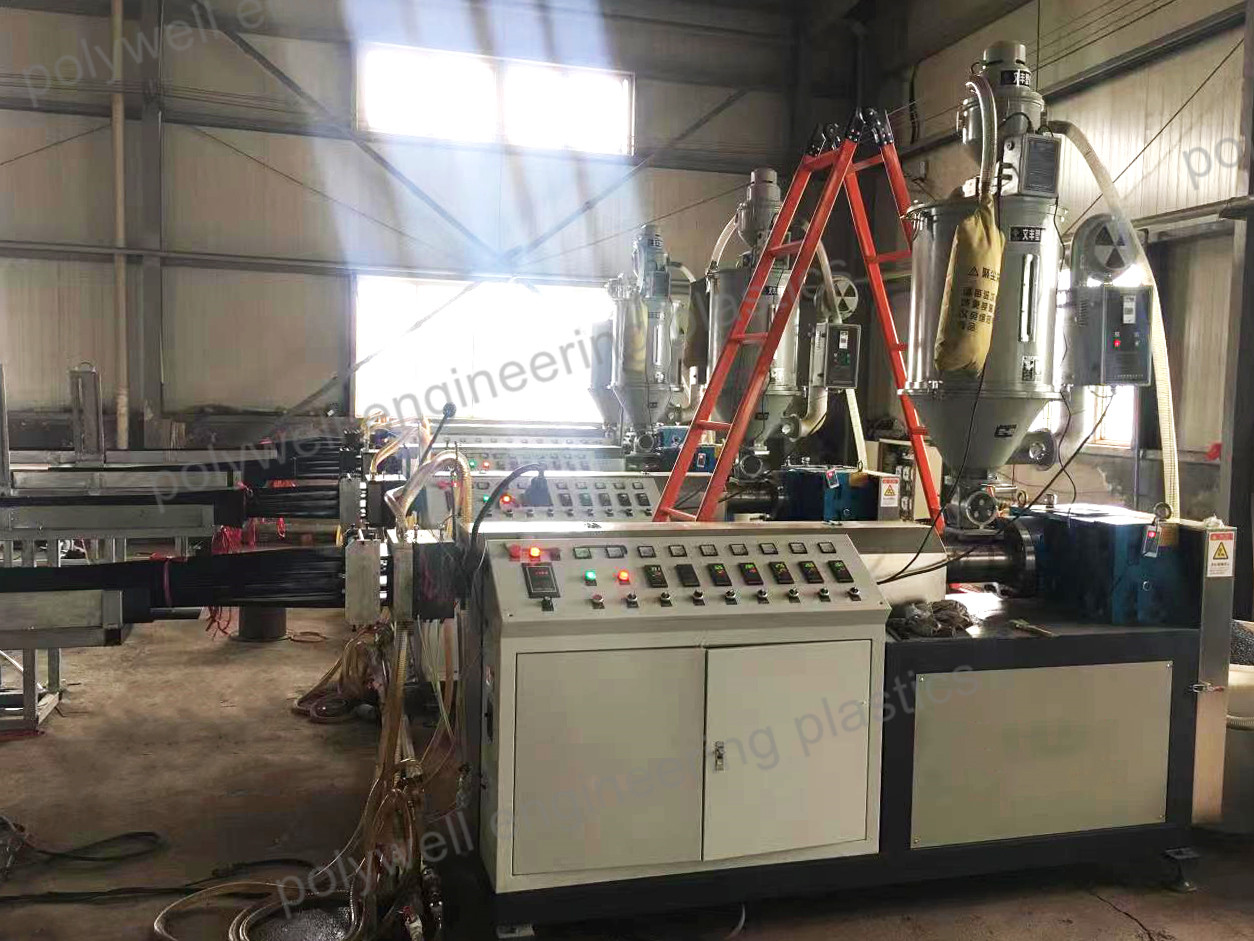

Our Factory
